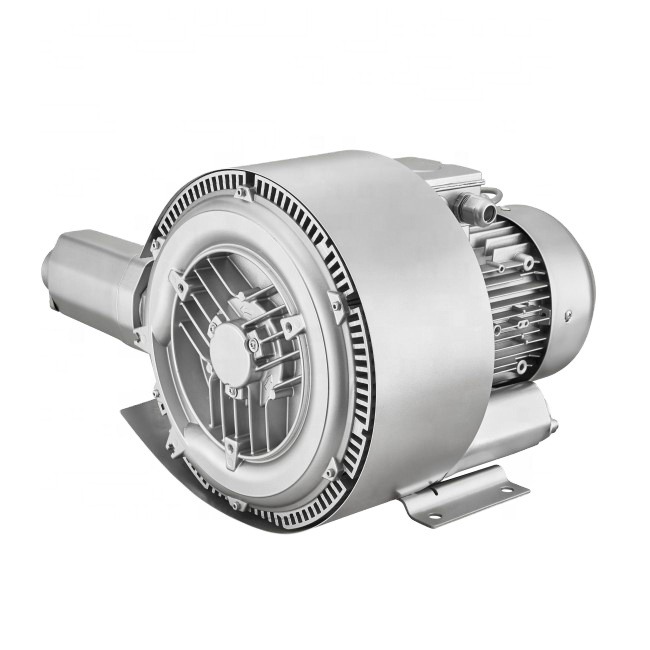

High Pressure Blower 2.2Kw Electric Fan Blower Centrifugal Blower

Double Stage Ring Blower

1. Specifications

When the impeller of the high-pressure blower rotates, due to the centrifugal force, the wind vane urges the gas to move forward and outward, thereby forming a series of spiral movements. The air between the blades and the impeller is accelerated in a spiral shape and squeezes the air outside the pump body into the side channel (inhaled by the suction port 1).
When it enters side channel 2, the air is compressed, and then returns to impeller 3, and the blades accelerate whirl again.

When air passes through the impeller and side channel along with a spiral track, all impeller blades are compressed and accelerated.
With the rotation, the kinetic energy of the air increase, which further increases the pressure of the air passing along the side channel.

When the air reaches the connection point of the side channel and the emission flange (side-channel narrows at the outlet), the air is pushed out of the blade and exits the pump body through outlet 4.

3. Machine Fitting

The accessories of the blower

1) Air filter: Filter the dust particles, apply to a bad environment.

2) Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.

3) Silencer: reduce blower noise 5-10db, apply to a quiet environment.

4.Rated Products

1) Single-Phase Side Channel Blower

2) Three-Phase Ring Blower

1) About Us

Since established in 1999, adhering to the enterprise culture of " Efficient, Pragmatic, Precise, Innovative", we have been committed to the development and innovation of national industry and devoted to creating the most qualified products in factory automation. So far, we have possessed advanced machining types of equipment such as imported machining center, CNC lathe, NC milling machine, CNC cutting machines, etc. Our products, with an excellent reputation, have been not only used by many domestic famous enterprises, but also exported to Europe, America, Africa, the Middle East, and Asian countries, etc.

2) Certificate

3) Our Exhibition

Packages: All the goods are packed by plywood case for export standard.

Shipping Method: By DHL/FedEx/TNT/UPS at your request, we are the longterm partnership with these international Express companies, so we can get the lowest discounted price for our customers.
And we can also transport blowers by ocean shipping and air-ferry.

Before quotation, we will check the shipping charges by all these, and select one of the cheapest ones for our customers.
